CS-CORR Corrugation Welder is an optimized welder for the corrugation structure of Product Carrier.
Download Catalog
Detail Info
• It drives and welds the wall surface with the built-in magnet of the Body and Side Guide Grip.
• It is compact and lightweight. And it is easily moved and installed.
It can be operated even by unskilled workers.
• Aligning the centers of the Torch and Wheels, the Torch deviation from the welding section on the
curved surface is prevented.

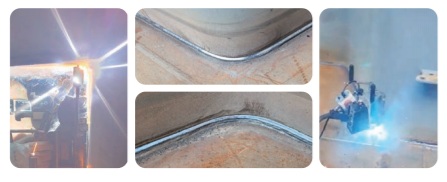

• Even on curved surfaces, the welder does not deviate from the welding seam and a consistent
bead is formed.
• It is applicable for 2F or 4F position.
• It can be used for the construction of large structures (overhead position) such as
bridges and buildings also.
| DIVISION | CS-CORR | |||
|---|---|---|---|---|
| General | AC Input Power | AC100V~240V 50/60Hz | ||
| DC Input Power(Option) | AC 48V | DC18-72V(Option) | ||
| Dimensions | 278(W) X 386(L) X 279(H) | |||
| Weight | 7.5Kg | |||
| Body | Driving Method | 4 Wheels Driven | ||
| Traveling Speed | 0~98 cm/min | |||
| Traveling Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | |||
| Slide | Up/Down Angle | 20° ±10° | ||
| Running Angle | ±5° | |||
| Y-SLIDE | 0~42mm | |||
| Z-SLIDE | 0~65mm | |||
| Welding Position | Fillet | Groove | PIPE |
| 2F, 4F |
