CS-100P Pipe Welder
Home » Products » Rail Travelling Fillet » Rail Pipe »
Rail Traveling Fillet
Rail Pipe
CS-100P

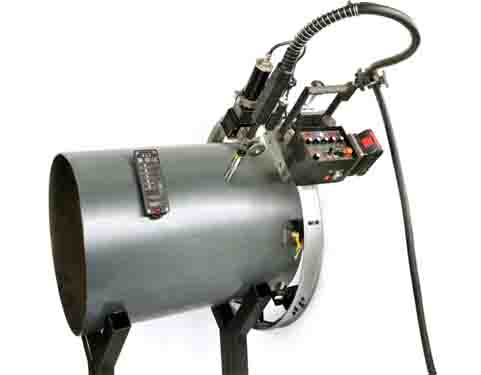

CS-100P Pipe Welder is applicable for the Pipe more than 250mm’s diameter. The size of each Pipe Rail is readjustable by ±50mm’s diameter.
Download Catalog
Detail Info
• The welder weldes pipes.
• It searches for welding points along the rail and is suitable for horizontaland vertical-up welding position.
• CS-100P is applicable for the Pipe more than 250mm’s diameter.
• The size of each Pipe Rail is readjustable by ±50mm’s diameter.
• The fixing device for the pipe rail is manufactured as a unit, so it is possible to apply transformation
up to ±50Ø of the pipe size.
| DIVISION | CS-100P | |||
|---|---|---|---|---|
| General | AC Input Power | AC100V~240V 50/60Hz | ||
| DC Input Power(Option) | AC 48V | DC18-72V(Option) | ||
| Dimensions | 399(W) X 289(L) X 350(H) | |||
| Weight | 8.4Kg | |||
| Body | Driving Method | Rack-Pinion Driven | ||
| Traveling Speed | 0~88 cm/min | |||
| Traveling Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | |||
| Torch | Y-Slide | 0~110mm ±5% | ||
| Z-Slide | 0~70mm ±5% | |||
| R-Slide(Worm) | 360 ˚(Rotation) | |||
| Weaver | Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | ||
| Reducer | 1000:1 | |||
| Weaving Width | ±4˚ ±5% | |||
| Weaving Speed | 0~5 rpm/min | |||
| Left/Right Stop | 0.0~9.9(sec) | |||
| Center Shift | 0~360 ˚ | |||
| Rail | Fixing | Magnet ON/OFF Type | ||
| Material / Size | AL /1.5M /7Kg | |||
| Welding Position | Fillet | Groove | PIPE |
| 5G |
