CS-B100C Battery Powered Butt/Fillet Weaving welder with Magnet On-OFF switch
Battery Carriage
CS-B100C
CS-B100C Battery Powered Butt/Fillet Weaving welder delivers high-performance, efficient welding with extended battery life and precise control, enhancing productivity across diverse applications.
Download Catalog
Detail Info
• Litium-ion Battery 14.4vdc 4.0Ah, avr 8hours use

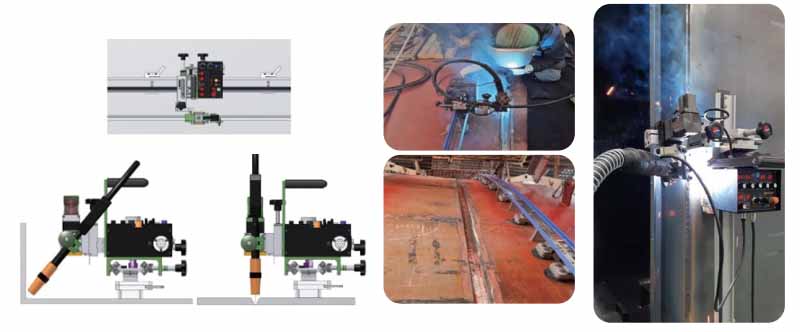

• It is a weaving welder of multi-positions driving on the aluminum rigid rail, and it can be easily
controlled by the panel controller and the remote controller.
• The stop sensors of its both sides stop the welder automatically when a welding job is completed.
• Controlling the weaving width, the desired leg length can be acquired through a travel.
• It drives at a constant speed with the minimized gear backlash.
Thus the high welding quality and the long life span of the welder is acquired.
• The position of the rail can be easily readjusted by the on-off magswitches.
| DIVISION | CS-B100C | |||
|---|---|---|---|---|
| General | AC Input Power | – | ||
| DC Input Power(Option) | BOSCH BATTERY 18V 4.0Ah | |||
| Dimensions | 340(W) X 210(L) X 239(H) | |||
| Weight | 7.5Kg | |||
| Body | Driving Method | Rack-Pinion Driven | ||
| Traveling Speed | 0~88 cm/min | |||
| Traveling Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | |||
| Torch | Up / Down Angle | 0~40mm ±5% | ||
| Front / Back Distance | 0~60mm ±5% | |||
| Running Angle | ±5˚ | |||
| Weaver | Weaving Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | ||
| Reducer | 1000 : 1 | |||
| Weaving Width | ±16˚ | |||
| Weaving Speed | 0~5 rpm/min | |||
| Left / Right Stop time | 0.0~9.9(sec) | |||
| Center Shift | 0˚ ~ 360˚ | |||
| Operating Distance of RC | 10m | |||
| Rail | Fixing | Magnet ON / OFF type | ||
| Material / Size | AL / 1.5M / 5.4Kg | |||
| Welding Position | Fillet | Groove | PIPE |
| 2F, 3F, 4F | 1G, 3G | – |
