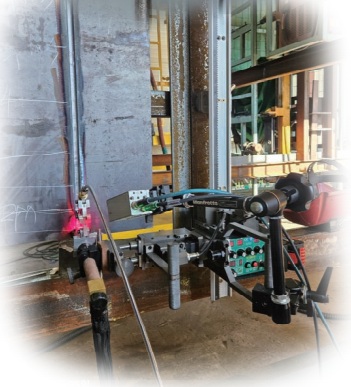

CS-TB100C Battery powered Butt / Fillet weaving welder for Tig

CS-TB100C Battery powered Butt / Fillet weaving welder for Tig is a weaving welder of multi-positions driving on the aluminum rigid rail, and it can be easily controlled by

Download Catalog

Detail Info

• It is a weaving welder of multi-positions driving on the aluminum rigid rail, and it can be easily controlled by
the panel controller and the remote controller.
• The stop sensors of its both sides stop the welder automatically when a welding job is completed.
• Controlling the weaving width, the desired leg length can be acquired in a travel.
• It drives at a constant speed with the minimized gear backlash.
Thus the high welding quality and the long life span of the welder is acquired.
• The position of the rail can be easily readjusted by the on-off magswitches.
• It is specialized in TIG weaving welding( installed with high frequency dedicated TIG PCB )

DIVISION		CS-TB100C
General	AC Input Power	–
	DC Input Power(Option)	Bosch Battery 18v 4.0Ah
	Dimensions	352(W) X209(L) X258(H)
	Weight	7Kg
Body	Driving Method	Rack -Pinion Driven
	Traveling Speed	0~880 mm/min
	Traveling Motor	DC 24V, 12W, 5000RPM BLDC MOTOR
Torch	Up/Down Angle	0~40mm ±5%
	Front/Back Distance	0~40mm ±5%
	X-Slide	±20mm
	Running Angle	±20mm
Weaver	Weaving Motor	DC 24V, 12W, 5000RPM BLDC MOTOR
	Reducer	1000 : 1
	Weaving Width	±16°
	Weaving Speed	0~5 rpm/min
	Left / Right Stop time	0.0~9.9(sec)
	Center Shift	0˚ ~ 360˚
Rail	Fixing	Magnet ON/OFF Type
Rail	Material/Size	AL / 1.5M / 5.4Kg
